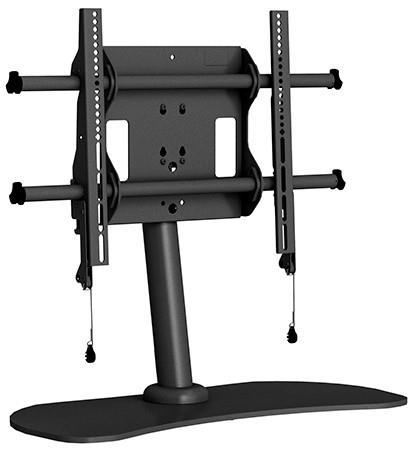

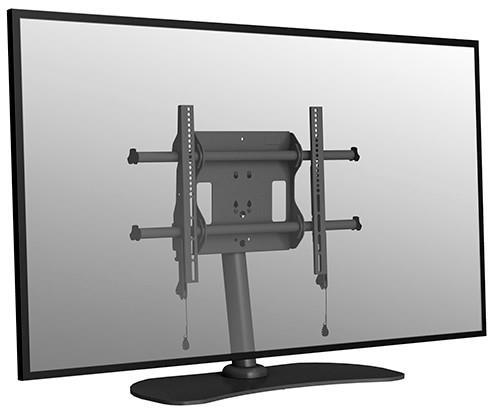

This Fusion table stand safely supports displays on tables with swivel and cable management features.
Key Features
- Smooth swivel
- Prevent screen from colliding with walls or furniture by setting rotation limits at +/- 15° or 30°
- Easily route and conceal cables through a wide, in-column channel for a clean finish
- Built-in universal interface fits most screens 46" - 70", and provides everything needed for installation in just one SKU
- Mounting pattern range: VESA® 100 x 100 mm - 642 x 400 mm
- Ideal for hospitality applications
- Set screw locking to prevent lateral slide off-center
- sidejustering
- Nej
- VESA interface
- 100x100-642x400
- Dybde justering
- Nej
- Låsbar
- Ja With padlock (option)
Generelt
- Farve
- Sort
- Display orientation
- Landscape
Funktioner
- Højdejustebar
- Ja 76 mm
- Tilt
- Nej
- Roterbar/Pivot
- Ja +/-15° or 30°
- Drejbar
- Nej
Montering
- Antal skærme
- 1 pcs.
- Max vægt (pr skærm)
- 56,7 kg
- Applikation
- Tablestand
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400
Yderligere oplysninger
- Garanti
- 10 år
Forpakningsinfo
- Forpaknings størrelse
- 850 x 425 x 143 mm
- Forpaknings vægt
- 25,00 kg
