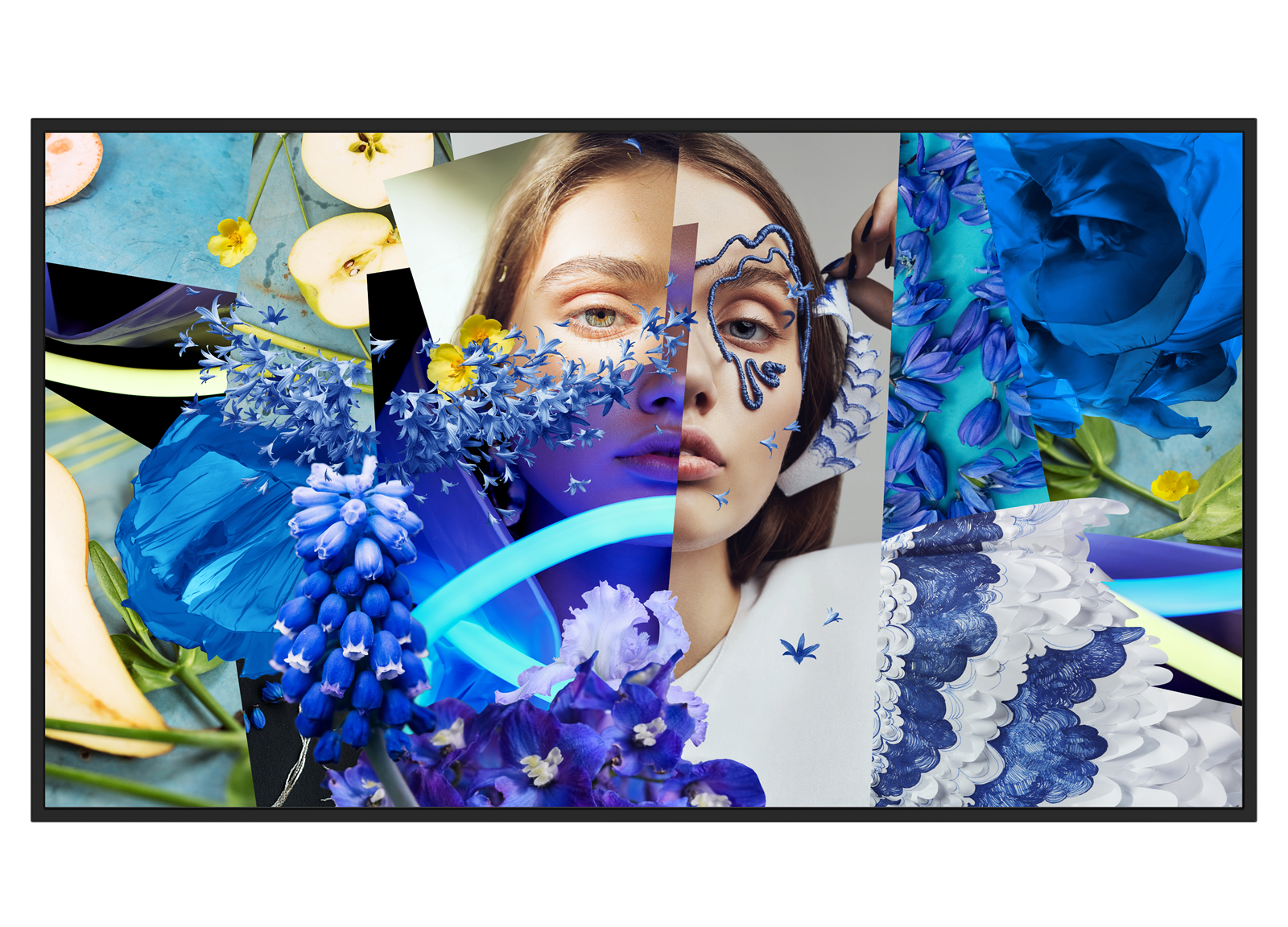

32-inch Slim Digital Signage

  • Plastic shell appearance, slim frame, and all-in-one design.
  • Exquisite image, industrial A+ panel, auto-coloring and image-enhancing engine.
  • Variable materials, static and dynamic materials, including pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
  • Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
  • Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs.
  • Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, and support creating custom users, allocating permission for users according to user level, and permission templates.
  • Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety.


Display

Drifttid
24/7
Billed diagonal
32 "
Opløsning
1920x1080
Brightness
500 Nits
Haze value (%)
25
Portræt
Ja

Functions

Beskyttelsesglas
Nej
Videovæg
Nej
Udendørs brug
Nej
TV Tuner
Nej
Indbygget speaker
Ja 2x 10w
Mediaplayer type
Integrated Android Android 13, Cortex-A55, 4-core, main frequency 1.92 GHz

Connections

Video ind
DisplayPort x1
Video ind
HDMI x3
Audio Udgange
3,5mm tele x1 Line out

Communication

Ethernet (RJ-45)
Ja
Wi-Fi
Built-in (2.4G/5G, 802.11 a/b/g/n/ac/ax)

Energy

Strømforsyning
100 to 240 VAC, 50/60 Hz internal pos
Forbrug standby
0,5 W
Forbrug normalt
45 W
Forbrug max
90 W

Dimensions and weight

Nettovægt
5,4 kg

Yderligere oplysninger

Inkluderet tilbehør
Digital signage × 1, wall-mounted backboard (including package of mounting bolts) × 1, power cord for europe × 1, RS232 cable × 1 , remote control × 1, user manual × 1, quick start guide × 1, Regulatory Compliance and Safety Information × 1, logo stickers × 1, energy efficiency label × 1
