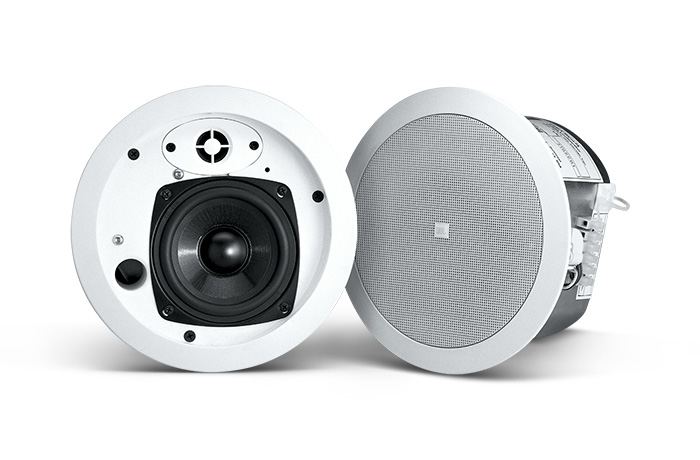

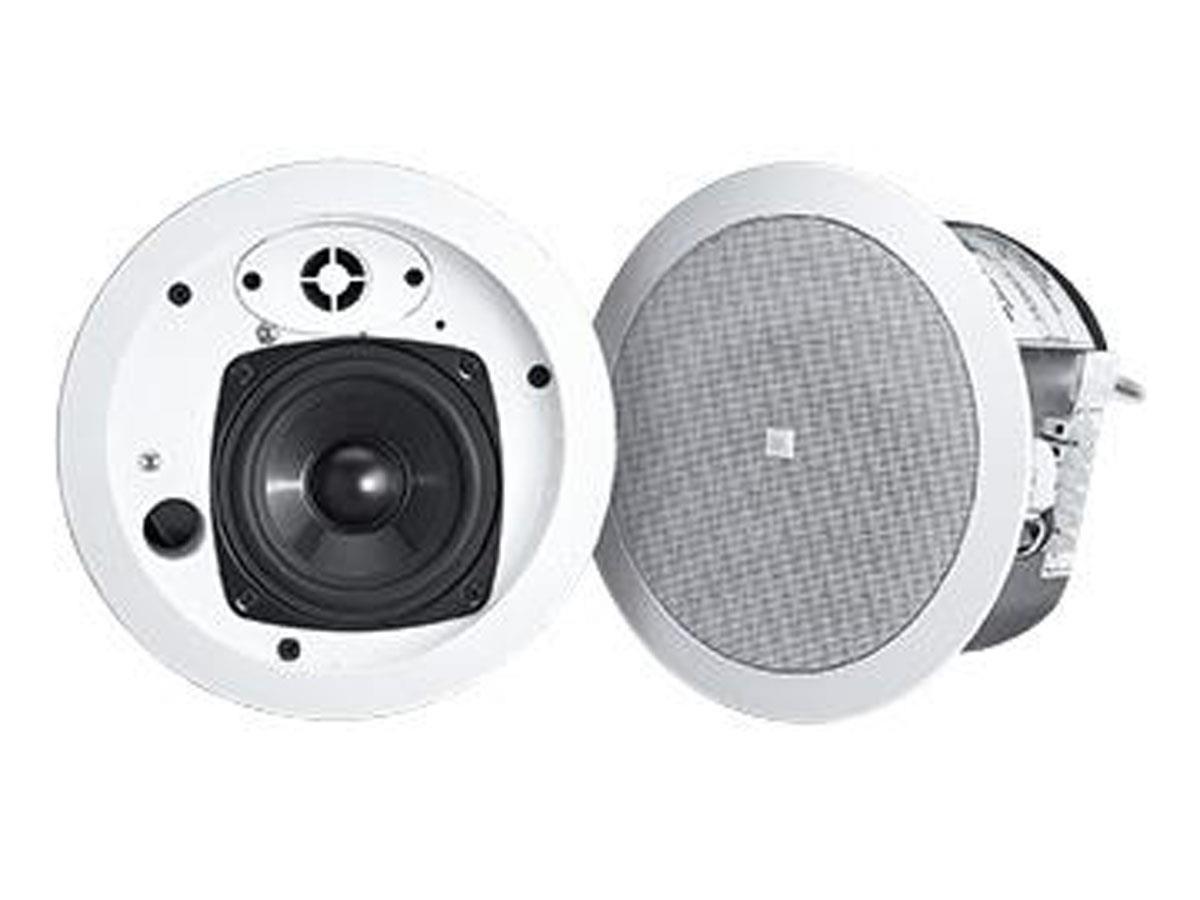

The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems. These speakers are ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports.
Low distortion, a smooth, natural frequency response, and a 25W transformer make the Control 24CT MicroPlus ideal for medium volume business music. Low frequency output can be augmented with the addition of one of the Control Contractor subwoofer models. Similar mid/ high frequency voicing to other JBL Control Contractor loudspeakers allows mixing and matching of models within zones without requiring separate equalization.
Features
- Extremely wide 150° coverage.
- Smooth frequency response.
- Advanced crossover network provides very even coverage throughout listening area.
- Components:
115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround.
12 mm (.5 in) polycarbonate tweeter for extended response. - Includes 25 W multi-tap transformer for 70 V/100 V systems.
- Shallow 105 mm (4.1 inch) depth from back of baffle.
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Generelt
- Model serie
- Control 20
- Applikation
- Ceiling
- Aktiv/Passiv
- Passive
Højttalerenheder
- LF
- 4,5 "
- HF
- 0,5 "
Lydspecifikation
- Frequency range Min
- 80 Hz
- Frequency range Max
- 25.000 Hz
- Følsomhed (1W/1m)
- 85 dB
- Strømhåndtering
- 15 W
- 70/100V
- Ja
- Transformer taps (100V)
- 25W, 12W
- Transformer taps (70V)
- 25W, 12W, 6W
- Max SPL
- 99 dB
- Coverage angle (Hor)
- 150 °
- Coverage angle (Ver)
- 150 °
Forpakningsinfo
- Forpaknings størrelse
- 330 x 139 x 101 mm
- Forpaknings vægt
- 3,63 kg
Forpakningsinfo (2 pcs)
- Forpaknings størrelse
- 660 x 140 x 100 mm
- Forpaknings vægt
- 7,30 kg
