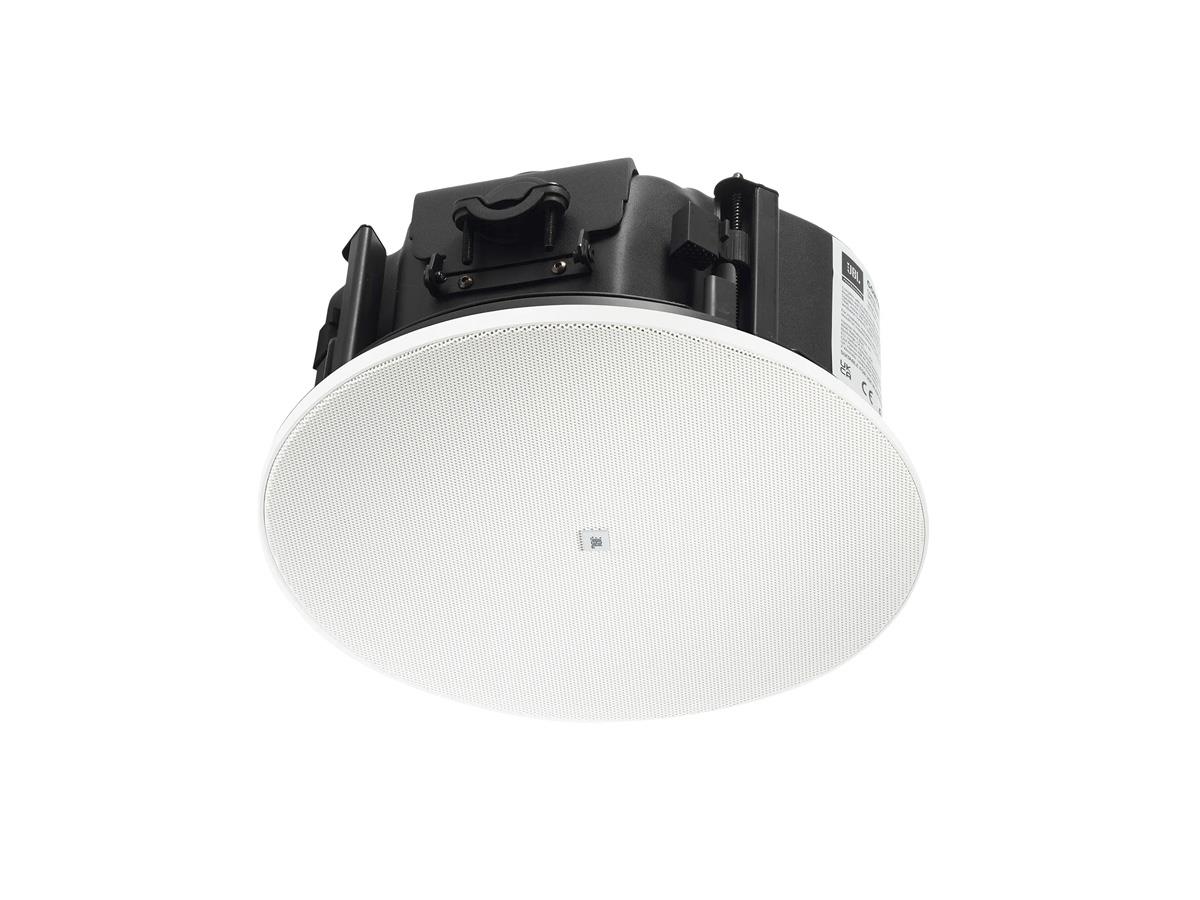

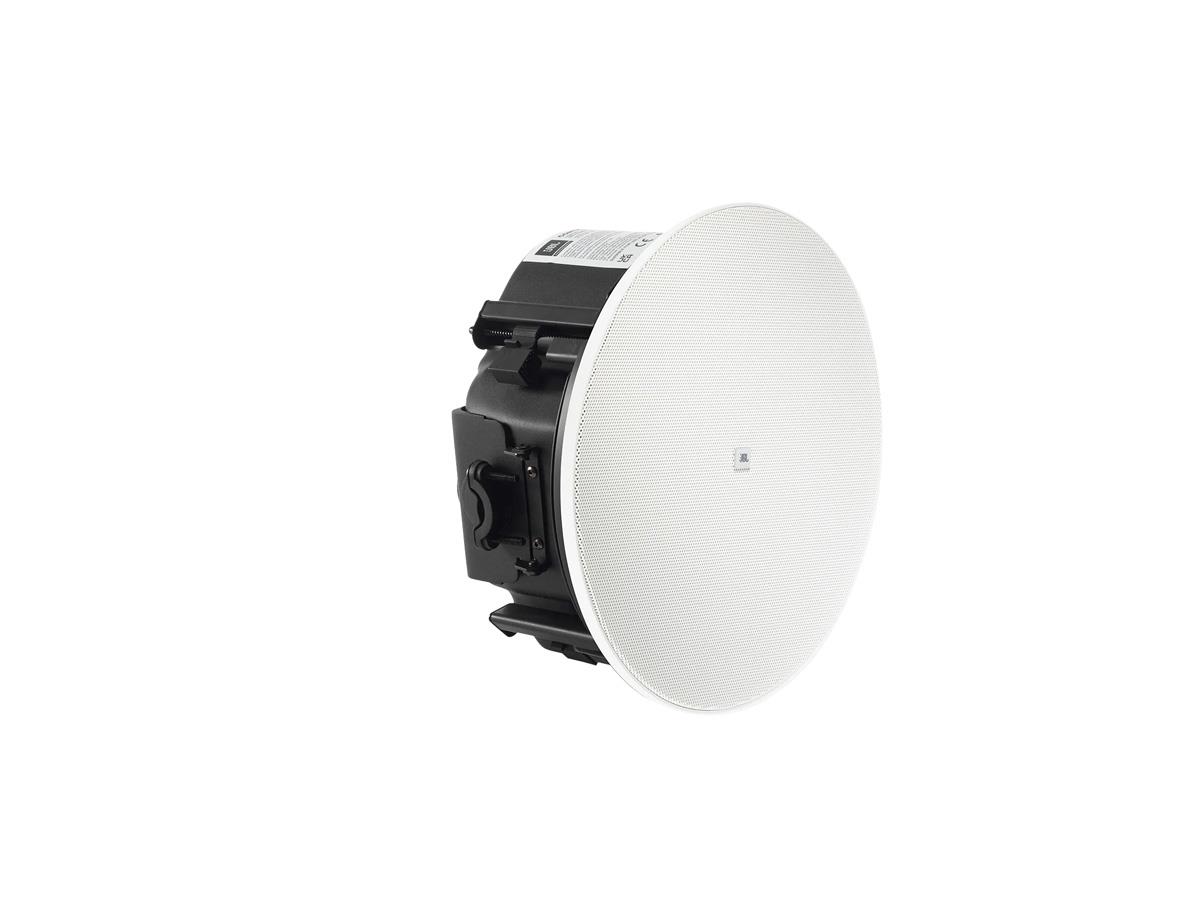

The JBL Control 426LP is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 110° of consistent, full, rich sound character that closely matches that of the Control 426C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 426LP includes a transformer to support both 70V/100V and low impedance applications.
- Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
- Low-profile enclosure (<100mm deep) for installing where ceiling plenum space is restricted
- CRBI™ technology for consistent sound coverage
- Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
- Full-face, easily-paintable magnetic grilles
- Black and square magnetic accessory grilles available
- Tool-free terminal covers with captive thumb screws
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
IP33 rated
Generelt
- Model serie
- Control 420
- Applikation
- Ceiling
- Aktiv/Passiv
- Passive
- DSP
- Nej
- Mixer
- Nej
- Farve
- Hvit
Højttalerenheder
- LF
- 6,5 "
- HF
- 1 "
Lydspecifikation
- Impedance
- 12 Ohm
- Frequency range Min
- 53 Hz
- Frequency range Max
- 20.000 Hz
- Følsomhed (1W/1m)
- 90 dB
- Strømhåndtering
- 110 W
- 70/100V
- Ja
- Transformer taps (100V)
- 60W, 30W, 15W
- Transformer taps (70V)
- 60W, 30W, 15W, 7.5W
- Coverage angle (Hor)
- 110 °
- Coverage angle (Ver)
- 110 °
Tilslutninger
- Dante
- Nej
- Bluetooth
- Nej
- Ethernet (RJ-45)
- Nej
- Wi-Fi
- Nej
Energy
- Battery
- Nej
Yderligere oplysninger
- Udendørs brug
- Nej
Forpakningsinfo
- Forpaknings størrelse
- 240 x 293 x 695 mm
- Forpaknings vægt
- 6,60 kg
Forpakningsinfo (2 pcs)
- Forpaknings størrelse
- 480 x 600 x 695 mm
- Forpaknings vægt
- 13,00 kg
