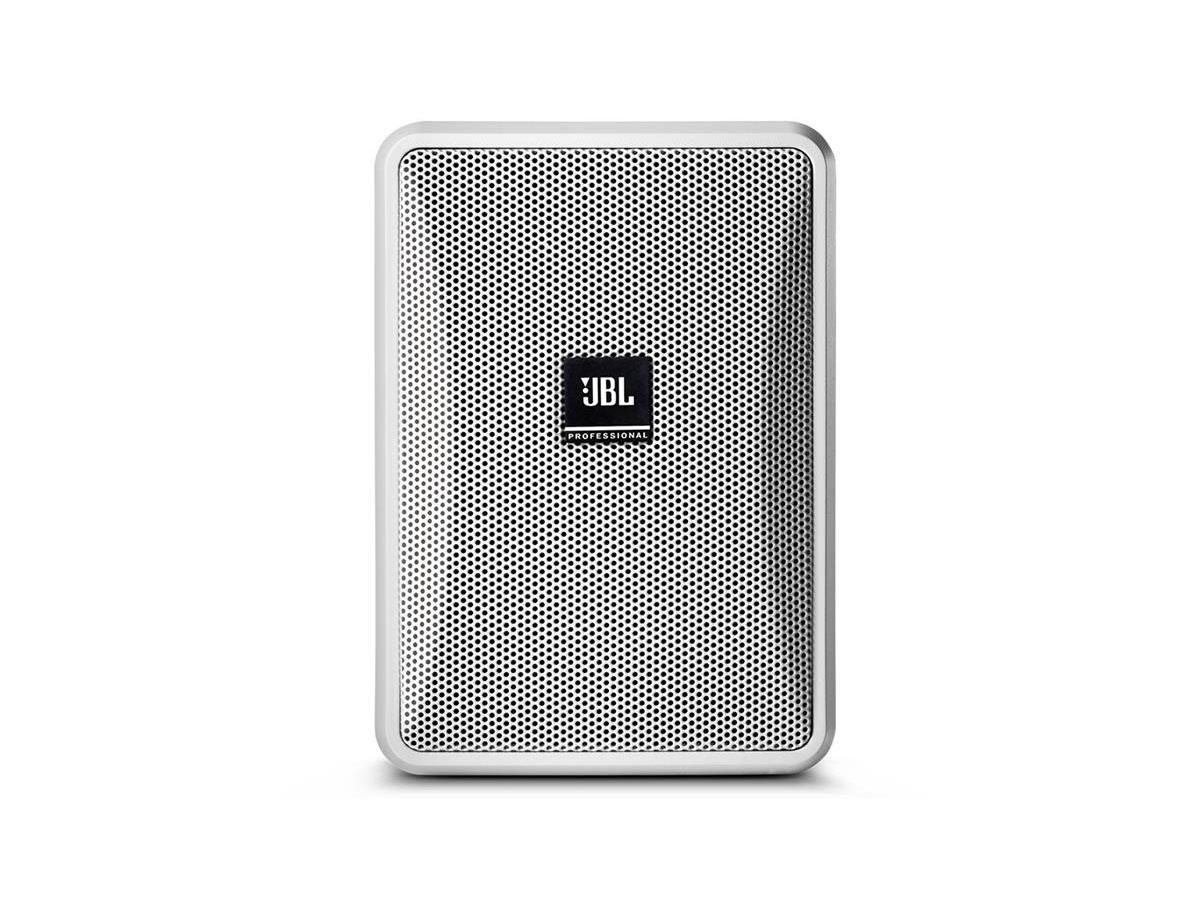

The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors.
The speaker provides a very natural sound character. The system is capable of handling 50 Watts continuous pink noise (100 Watts program) at its 8 ohm setting and is also equipped with a built-in 15 Watt 70V/100V multi-tap transformer for operation on distributed speaker lines. The combination of high sensitivity and power handling provides high Max SPL of 103 dB.
Features
- 3” woofer with woven fiberglass cone
- 1/2” PEI diaphragm tweeter with fluid cooling
- Contemporary, high-design appearance
- Built-in InvisiBall® mounting hardware*, plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100° x 100° coverage
- 50 Watt power handling (100 Watt program) in direct 8Ω setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
- High fidelity sound character with broad frequency response of 70 Hz – 20 kHz.
Generelt
- Model serie
- Control 20
- Applikation
- On wall
- Aktiv/Passiv
- Passive
- Farve
- Hvit
Højttalerenheder
- LF
- 3 "
- HF
- 0,5 "
Lydspecifikation
- Impedance
- 8 Ohm
- Frequency range Min
- 70 Hz
- Frequency range Max
- 20.000 Hz
- Følsomhed (1W/1m)
- 86 dB
- Strømhåndtering
- 40 W
- 70/100V
- Ja
- Transformer taps (100V)
- 15W, 7.5W, 3.7W
- Transformer taps (70V)
- 15W, 7.5W, 3.7W, 1.8W
- Max SPL
- 103 dB 109 peak
- Coverage angle (Hor)
- 100 °
- Coverage angle (Ver)
- 100 °
Dimensioner og vægt
- Bredde
- 141 mm
- Dybde
- 111 mm
- Højde
- 200 mm
- Nettovægt
- 1,8 kg
Yderligere oplysninger
- Udendørs brug
- Ja IP-44; IP-55 with optional WeatherMax grille/panel cover
- Inkluderet tilbehør
- InvisiBall wall-mounting system; 4 mm x 80 mm hex key
Forpakningsinfo
- Forpaknings størrelse
- 326 x 253 x 192 mm
- Forpaknings vægt
- 4,63 kg
Forpakningsinfo (2 pcs)
- Forpaknings størrelse
- 320 x 190 x 250 mm
- Forpaknings vægt
- 4,60 kg
