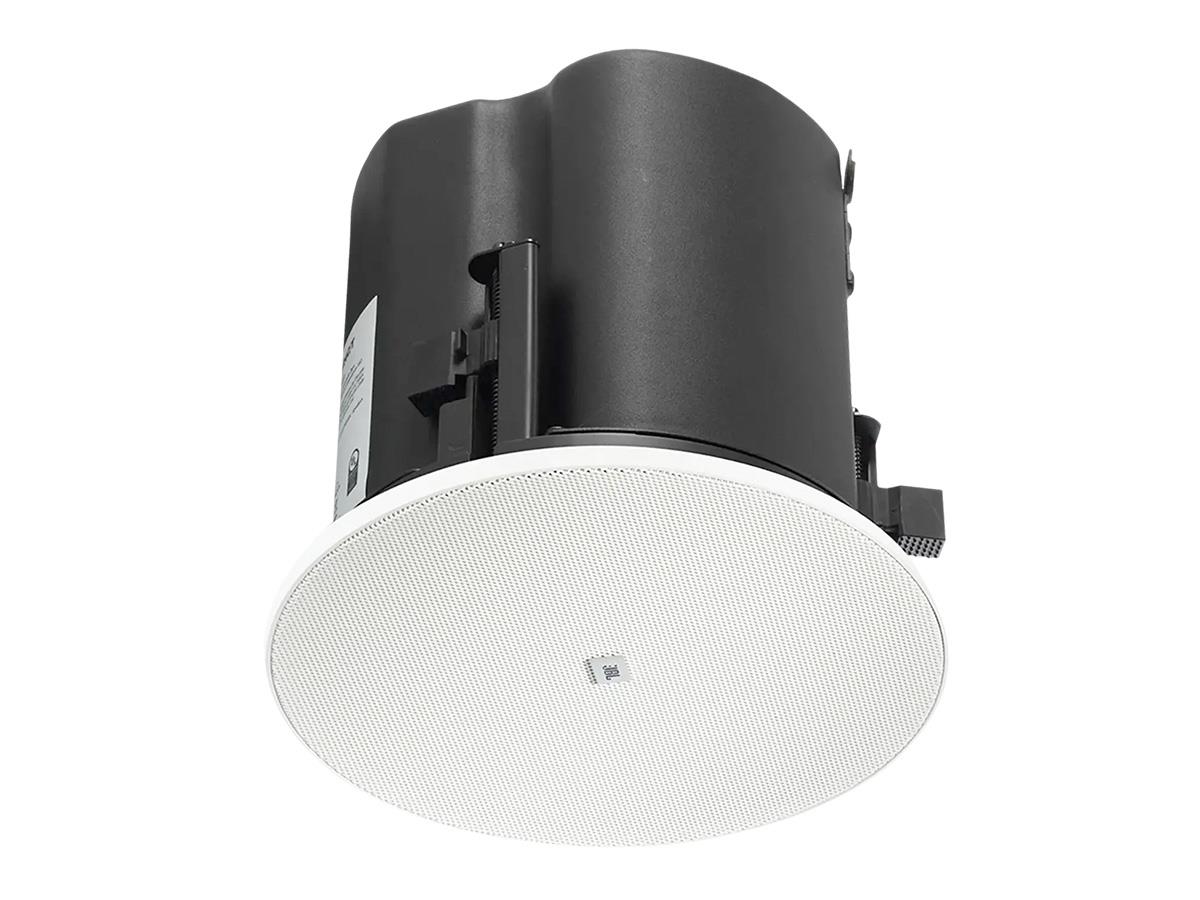

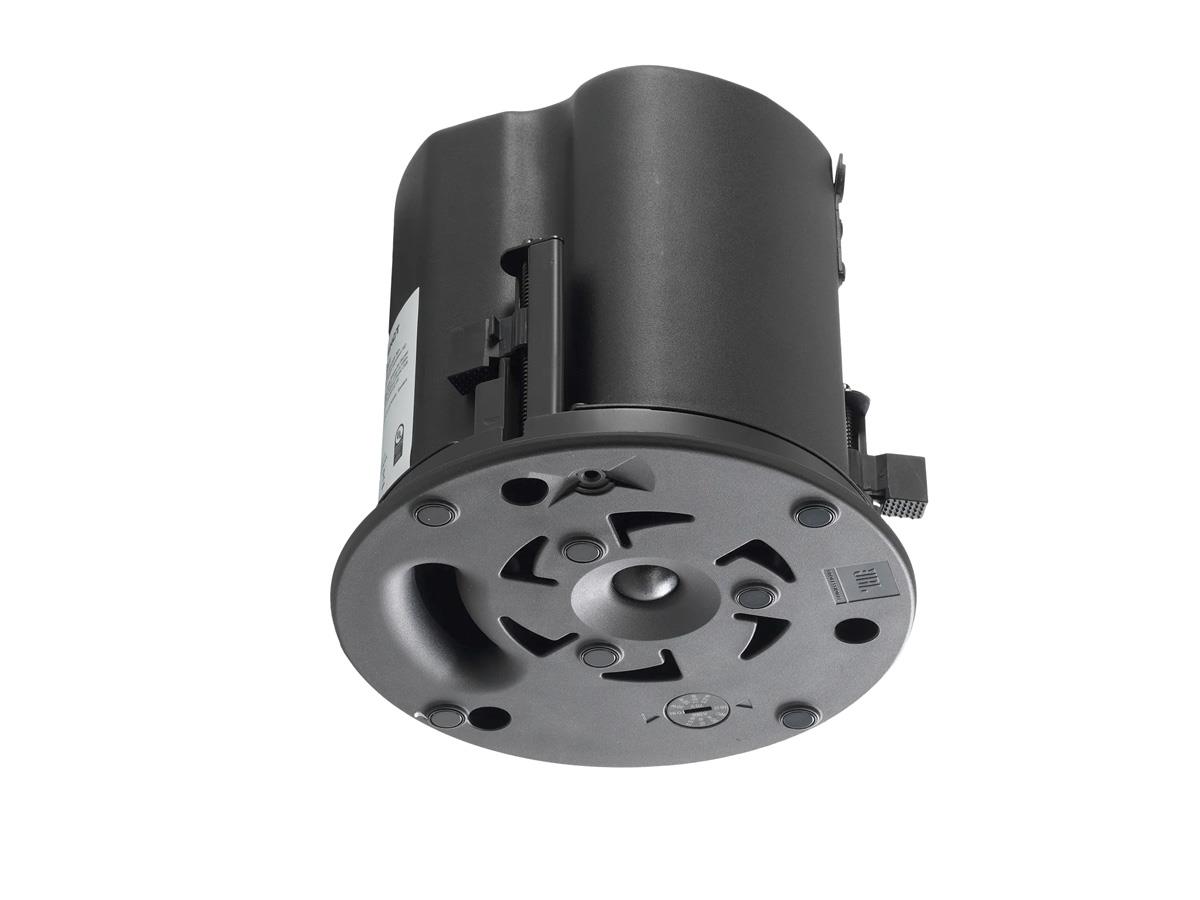

The JBL Control 424C/T is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 130° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 424C/T includes a transformer to support both 70V/100V and low impedance applications.
- Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- CRBI™ technology for consistent 130° coverage across the listening area
- Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
- Full-face, easily paintable magnetic grilles
- Tool-free terminal covers with captive hand screws
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
Generelt
- Model serie
- Control 420
- Applikation
- Ceiling
- Aktiv/Passiv
- Passive
- DSP
- Nej
- Mixer
- Nej
- Farve
- Hvit
Højttalerenheder
- LF
- 4 "
- HF
- 0,75 "
Lydspecifikation
- Impedance
- 16 Ohm
- Frequency range Min
- 63 Hz
- Frequency range Max
- 20.000 Hz
- Følsomhed (1W/1m)
- 87 dB
- Strømhåndtering
- 60 W
- 70/100V
- Ja
- Transformer taps (100V)
- 30W, 15W, 7.5W
- Transformer taps (70V)
- 30W, 15W, 7.5W, 3.8W
- Coverage angle (Hor)
- 130 °
- Coverage angle (Ver)
- 130 °
Tilslutninger
- Dante
- Nej
- Bluetooth
- Nej
- Ethernet (RJ-45)
- Nej
- Wi-Fi
- Nej
Energy
- Battery
- Nej
Yderligere oplysninger
- Udendørs brug
- Nej
Forpakningsinfo
- Forpaknings størrelse
- 240 x 293 x 695 mm
- Forpaknings vægt
- 6,60 kg
Forpakningsinfo (2 pcs)
- Forpaknings størrelse
- 480 x 300 x 700 mm
- Forpaknings vægt
- 13,20 kg
