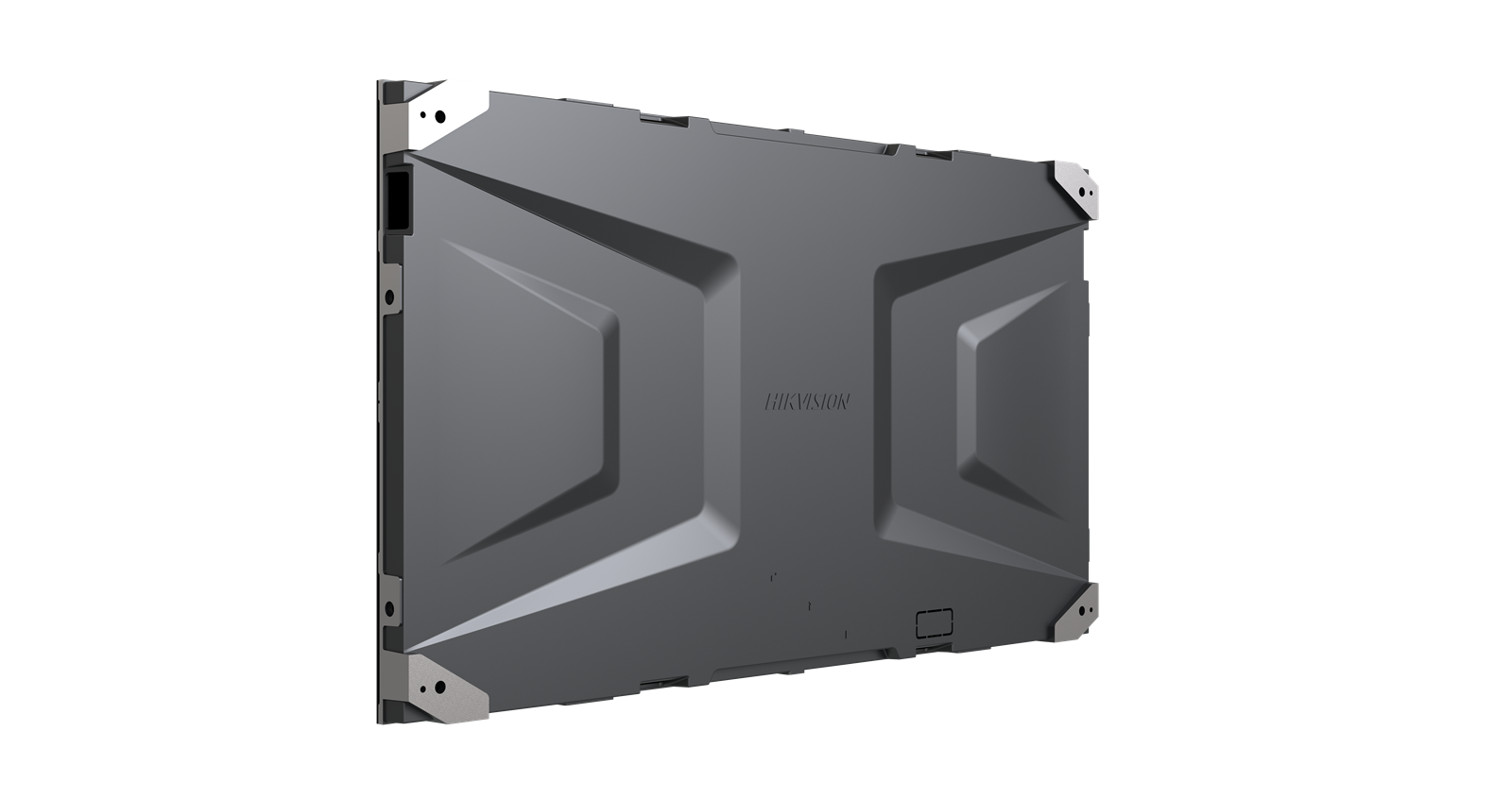

This is one module, which is 1 of the 4 modules that make up a 2x2 cabinet.
P1.8 GOB 600nits
- The display and control system is wholly self-developed, which is stable, safety and controllable.
- Highly integrated and compatible cabinet with simple and lightweight design.
- Easy to disassemble lamp board, power supply, and receiving card on the front side with high- precision aluminum die casting cabinet design.
- The solders are made of lead-free and non-toxic solder paste materials, which will not cause harm to human body and the environment.
- Automatically identify high-brightness and harsh picture details and adjust the brightness of the partial zones with dynamic engine algorithms adopted. The image is soft and comfortable to view and its quality is enhanced when unnecessary power consumption is reduced.
- Automatically remove moisture to protect lamp board from water damage when the device is kept in a humid environment or left unused for a long time.
- Support multiple ways to adjust screen parameters via remote control, tablet, and platforms.
- The packaging adopts recyclable materials, and the whole process of porduction achieves green and low-carbon standards.
- Please note: Module and cabinet sturcture should be seperately ordered.
Skærm
- Skærmopløsning
- 320x180
- Pixel pitch
- 1,88 mm
- Diode Type
- SMD Triad LED (with glue)
- Opdateringshastighed
- 3.840 Hz
- Brightness (Max)
- 600 Nits
LED Modul/kabinet
- No. cabinets/display (WxH)
- No. modules/cabinet (WxH)
- 2x2
- Cabinet Resolution
- 320x180
- Modul opløsning
- 160x90
Energi
- Strømforsyning
- 100~240 VAC ± 10%
- Consumption Max/m2
- 390 W
Dimensioner og vægt
- Bredde
- 443 mm
- Højde
- 360 cm
- Dybde
- 250 mm
- Nettovægt
- 1,22 kg
Yderligere oplysninger
- Service access
- Front service
- Min driftstemperatur
- 10 Celsius
- Max driftstemperatur
- 40 Celsius
- Inkluderet tilbehør
- Regulatory Compliance and Safety Information × 1 Connecting screws, light beads, driver IC, iron sheets
Forpakningsinfo
- Forpaknings størrelse
- 443 x 360 x 52 mm
- Forpaknings vægt
- 1,20 kg
