Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes. A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

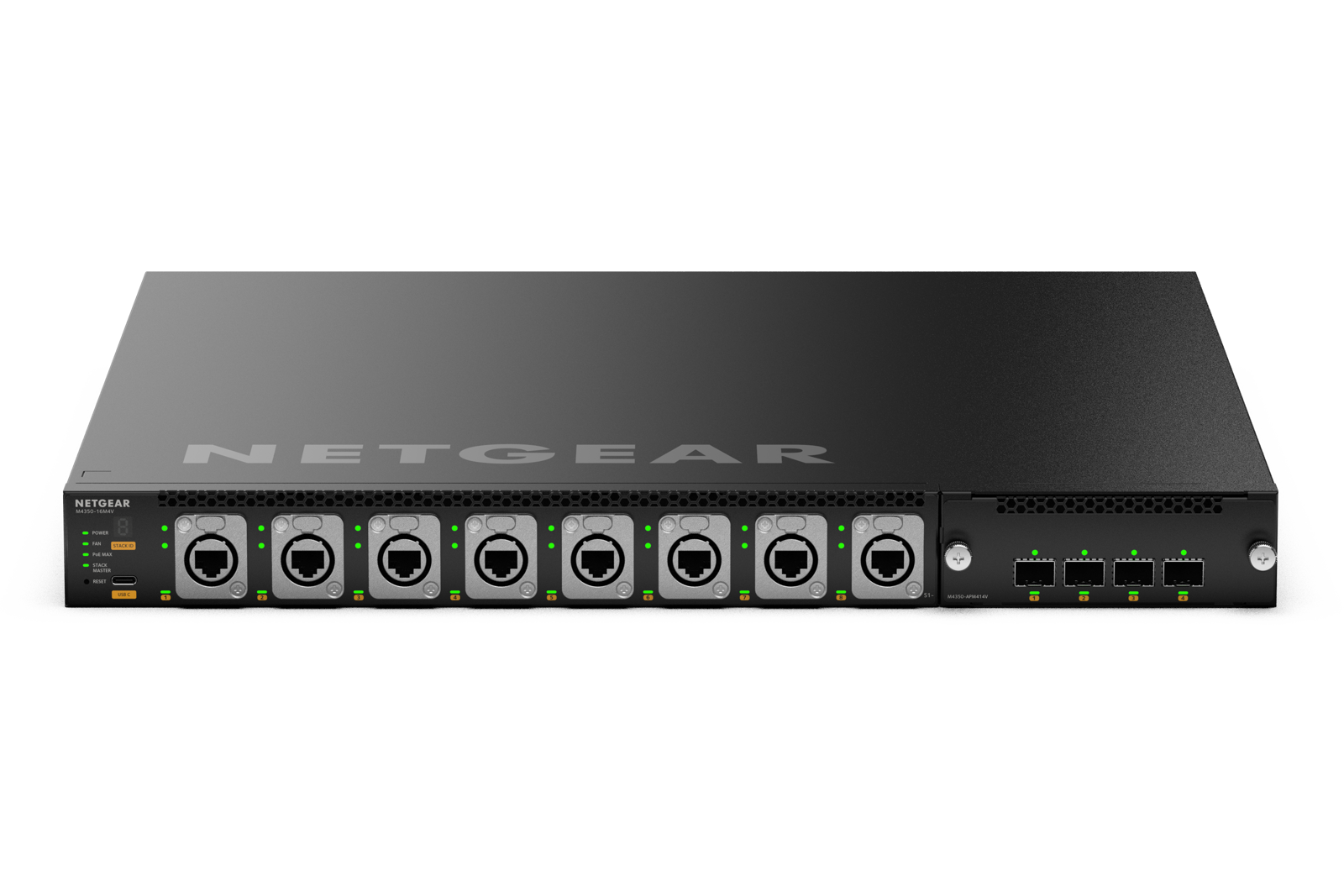

- 16x 2.5G PoE++ ports incl. 8x Neutrik etherCON connectors with 4x 25G SFP28 uplinks
- Two internal 800W power supplies providing 530W of redundant base PoE budget
- Switch ships with one APM414V interface card with 4x 25G SFP28 ports
- Optional APM414C Interface Card with 4x 10G RJ-45 ports
- Optional APM414SD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x MMF transceivers
- Optional APM414LD Interface Card with 2x Neutrik opticalCON DUO connectors for 4x SMF transceivers
- 2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, NETGEAR AV OS™, and NETGEAR Engage™ Controller speed up AV installations
- SMPTE ST 2110 Grandmaster Clock and Boundary Clock for AES67 and ST2059-2 applications
- Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS™ and Engage Controller
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
Generelt
- Switch Class
- Form factor
- 19" Rack, 1U
- Primary Port Speed
- 2,5 Gbit/s
- Primary Ports
- 20 x
- SFP Ports
- 4 x
Funktioner
- PoE
- Ja
- PoE Ports
- 16 x
- PoE Budget
- 530 W
- Overskuelig
- Hybrid
- Switch stacking
- Ja
- IGMP Support
- Ja
Dimensioner og vægt
- Bredde
- 440 mm
- Dybde
- 432 mm
- Højde
- 43 mm
- Vægt
- 7,85 kg
Forpakningsinfo
- Forpaknings størrelse
- 618 x 581 x 114 mm
- Forpaknings vægt
- 9,00 kg
