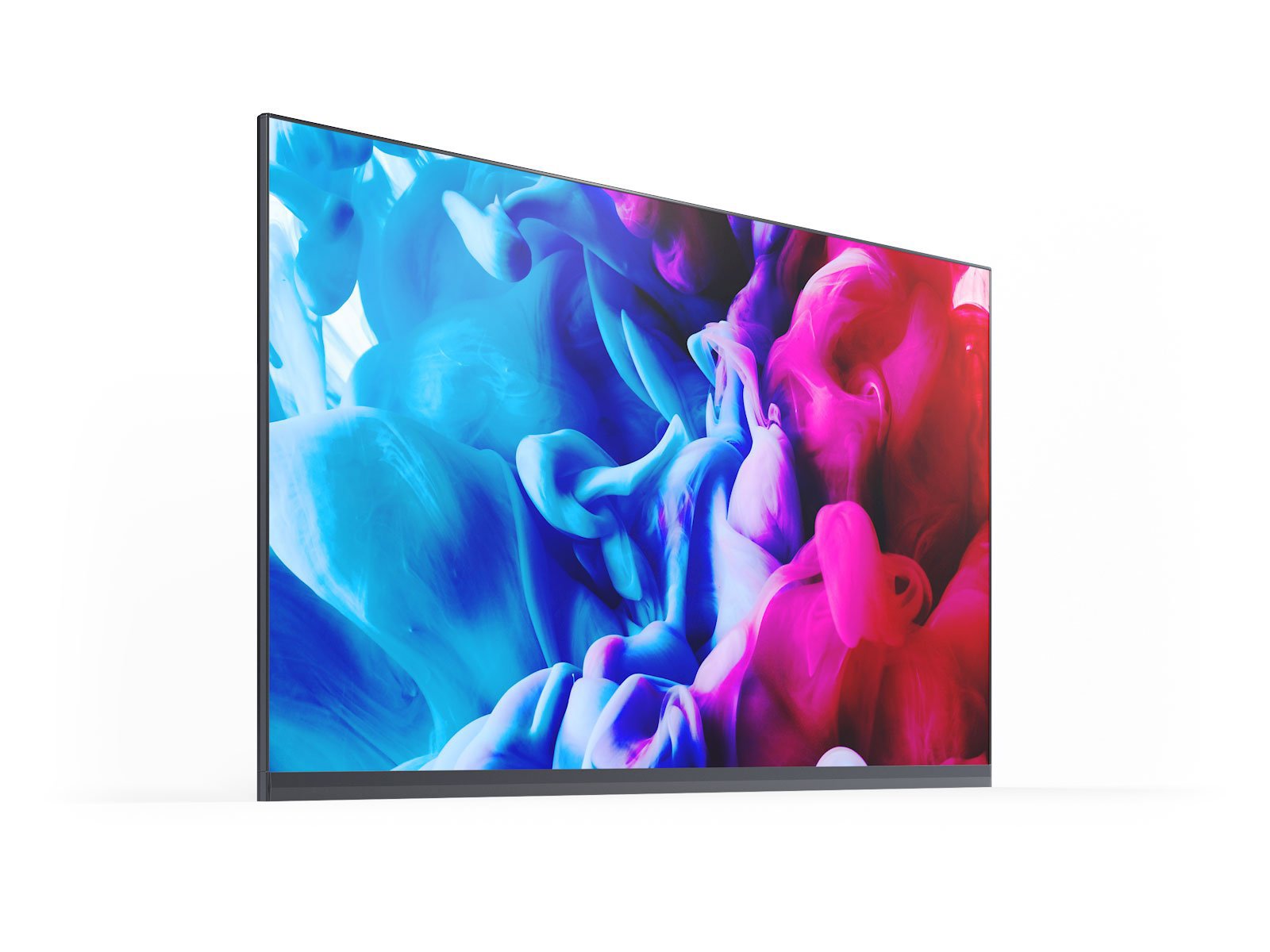

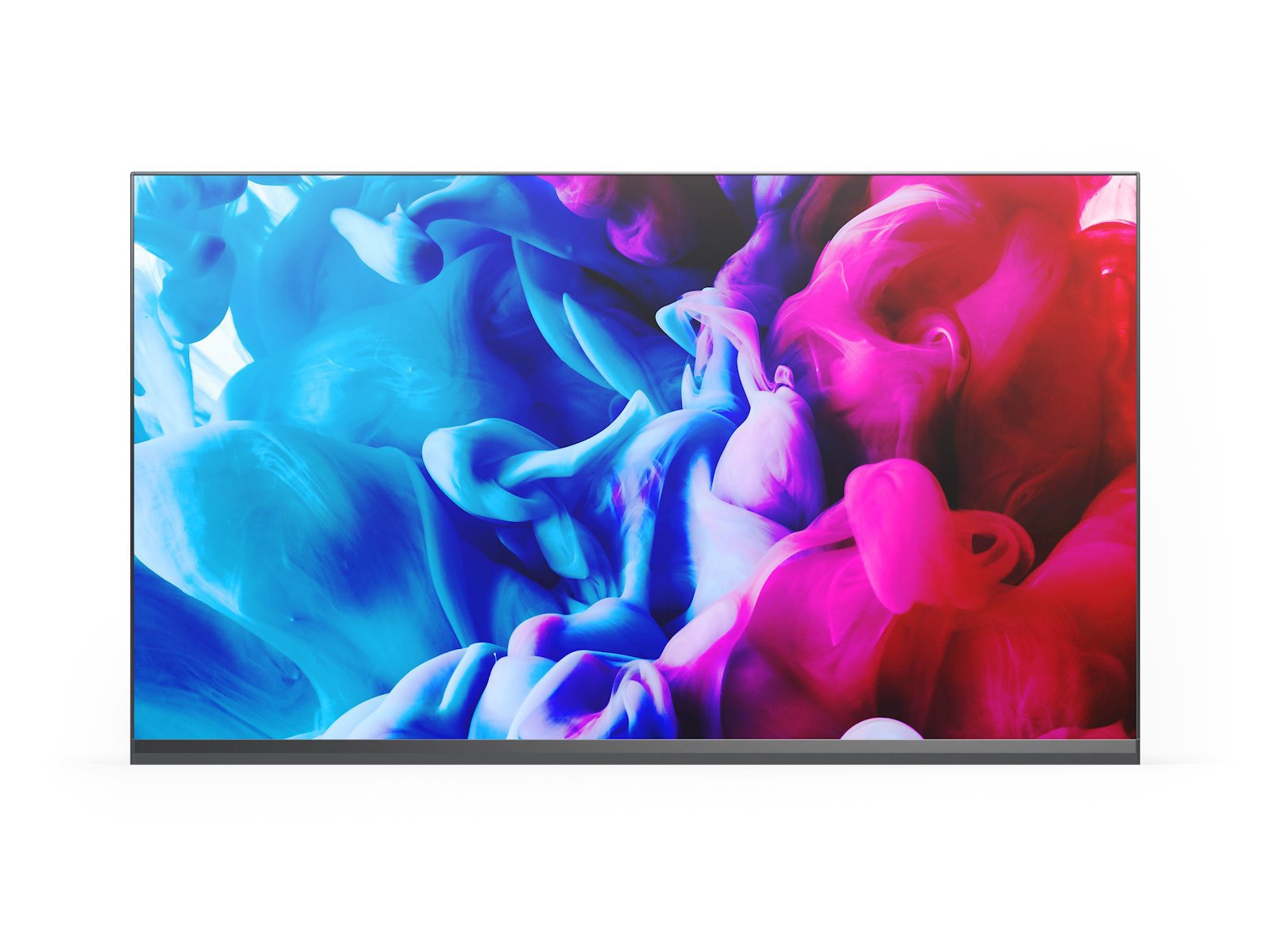

Next-Level Visual Performance. Built to Endure.
Delivering vibrant colour, deep blacks, and extreme contrast, the Sharp D Series redefines the visual experience with captivating content, even in the brightest environments. Powered by advanced flip-chip CoB technology, it provides outstanding image clarity and true blacks, aligning it for presentation of detail-rich content, wayfinding, and immersive digital storytelling across a variety of settings.
The highly energy efficient flip-chip CoB architecture not only enhances visual performance but also reduces power consumption, helping to significantly lower operating costs over its long lifetime.
Engineered for durability, the D Series performs reliably in demanding spaces such as transport hubs, public venues and corporate settings. Choose from standard-size bundle options, including all the components needed for seamless integration of large format displays, free from distracting bezels. Its robust construction, high brightness, and long service life make it a smart investment for professional installations that prioritise visual quality and long-term value.
Benefits:
- Excellent contrast ratio of up to 20000:1 and deep black level – ensures content is presented in vivid clarity for the best possible viewing experience.
- Significantly lowering your energy usage – CoB technology is highly efficient, consuming up to 40% less power compared to standard SMD technology at the same brightness output.
- Established mechanical cabinet design – supports wall mounted or freestanding installation with speed and ease, achieving precision module alignment for a single large surface perception.
- Excellent visual performance – unseen colour reproduction with excellent off angle performance.
- Secure investment in high-end dvLED visualisations – CoB technology enables installations to be more robust and long lasting.
Skærm
- Billed diagonal
- 220 "
- Skærmopløsning
- 3840 x 2160
- Pixel pitch
- 1,2 mm
- Diode Type
- COB (0408)
- Opdateringshastighed
- 3.840 Hz
- Brightness (Max)
- 800 Nits
- Viewing angle
- 160 ° horizontal / vertical
LED Modul/kabinet
- No. cabinets/display (WxH)
- 8x8 64
- No. modules/cabinet (WxH)
- 4x2
- Cabinet Resolution
- 480 x 270
- Modul opløsning
- 120 x 135
Tilslutninger
- Video ind
- 3G-SDI x1
- Video ind
- DVI-D x1
- Video ind
- HDMI x1
- Ethernet (RJ-45)
- Ja x1
Energi
- Strømforsyning
- 100-240 V AC; 50/60 Hz
- Consumption Max/m2
- 337 W
- Consumption Max tot.
- 4.480 W
Dimensioner og vægt
- Bredde
- 4.904 mm
- Højde
- 2.857,5 mm
- Dybde
- 82 mm
- Nettovægt
- 543 kg
Yderligere oplysninger
- Service access
- Front Service
- IP Classification
- IP20; IP40
- Min driftstemperatur
- -20 Celsius
- Max driftstemperatur
- 40 Celsius
- Inkluderet tilbehør
- 1x LED Controller; LED Modules (64 Cabinets, 512 Pixel Cards); Overframe Kit (8x8); Pixel Card Removal Tool; Powerbar (depending on version); Spare Parts Kit; Wall mount (8x8)
- Garanti
- 3 år
