10G UTP 180° Keystone Jacks with 6-Color Snap-On Bars

• For High-Bandwidth Networks Using Cat6a UTP and Cat6 UTP Cabling
• Toolless Design for Fast and Easy Terminations
• 10GBaseT; ANSI/TIA 568.2-D; ISO/IEC 11801 Class Ea, E
• PoE IEEE 802.3bt Type 4, Type 3 Compliant

Key Features:

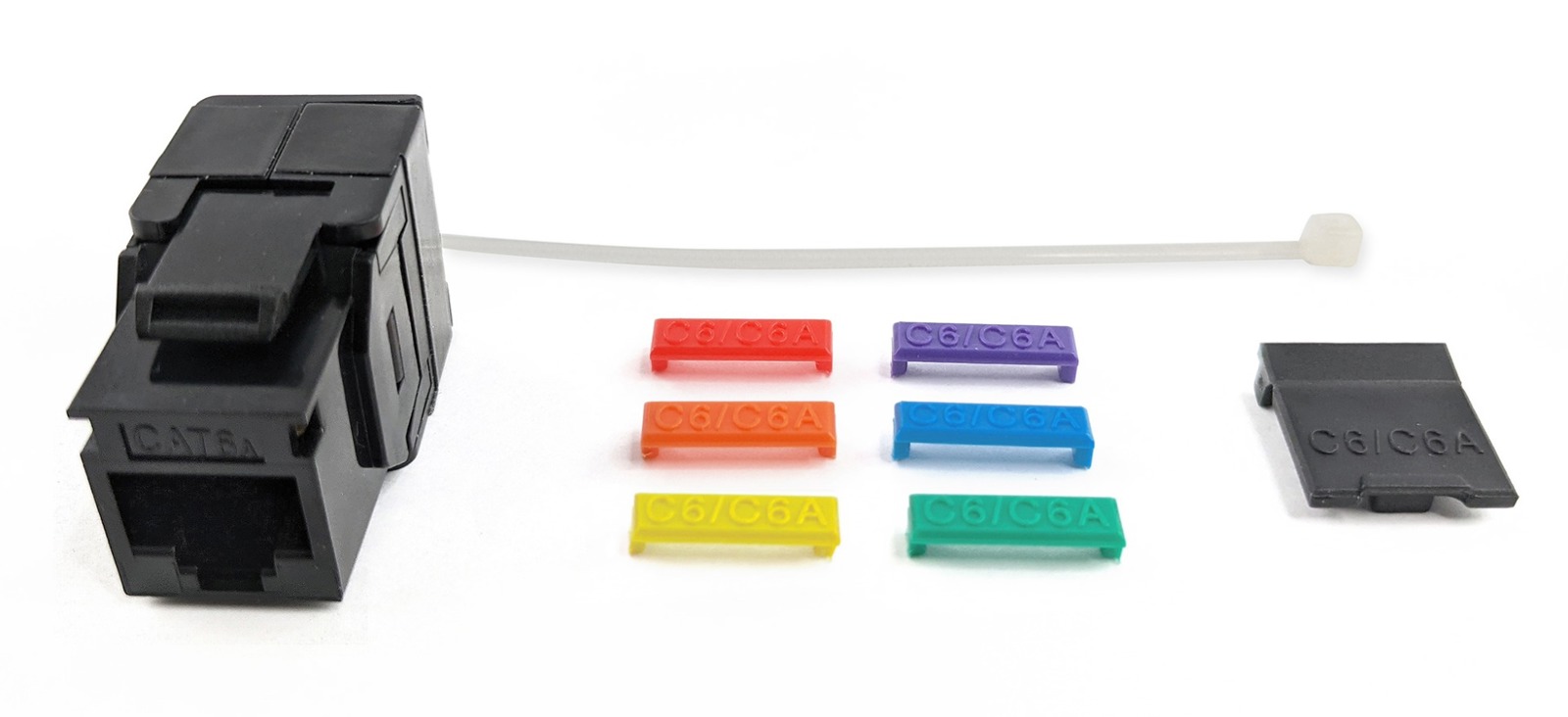

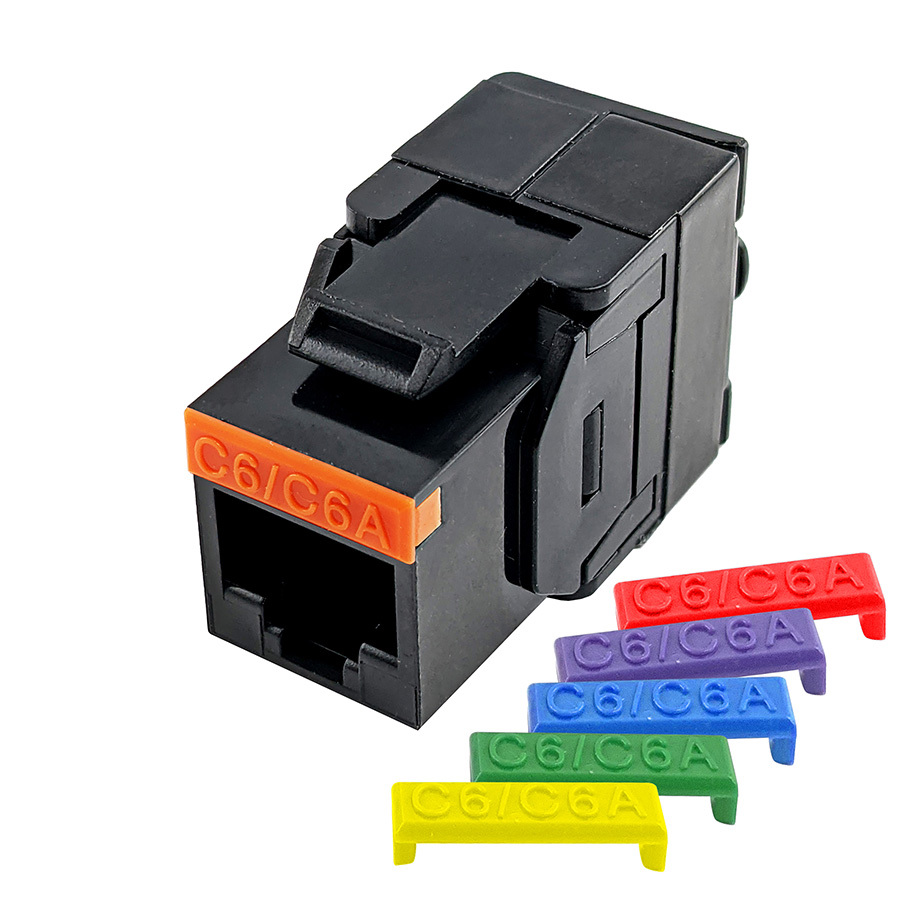

Interchangeable (6) Color Coded Snap-On Bars.
Color-Code your keystone jacks with SCPs Snap-on Bars. No need to stock multiple jacks in different colors. Our 10G UTP Keystone Jacks come in (2) base colors (Black or White) with (6) interchangeable color Snap-On Bars for easy application mapping of your panel. Supports ANSI/TIA 606-C cable labeling standards. (8) Colored Labeling Configurations Available: Black, Blue, Green, Orange, Purple, Red, White, Yellow. With just TWO skus you are stocking EIGHT different colored jack variations.

Narrow Design Supports Side-by-Side Installation in Patch Panels.
No wasted ports in your patch panels or keystone wall plates. The SCP 10G UTP Keystone Jacks easily fit side-by-side in every port.

Enhanced Crosstalk (AXT) Cancellation.
Many 10G UTP keystone jacks on the market require installation in staggered design patch panels because of noise affecting the signal quality. Not with SCPs 10G UTP Keystone Jacks. Our jacks are designed to reduce return loss and improve performance. This allows side-by-side installation even in high-density patch panels.

Wire Layout Diagram Simplifies Termination and Reduces Untwisting of Cable Wires.
Easy-to-Read labeling on both the wire cap and jack for ANSI/TIA 568 Type B wire pattern. Insert the conductors into the wire cap according to label, trim excess wires, then align arrow on the cap with arrow on the jack. Snap into place. It is that easy.

Supports both Cat6a UTP and Cat6 UTP Cabling.
No need for separate jacks. Supports 23AWG wire conductors. For shielded cables with FPE insulated wires, please use our part: CAT6A-SH-JACK.

Toolless Design Requires No Punchdown or Specialty Tooling.
Only an angled flush cutter is recommended (part: S45-801) to trim the wires.

180° Degree Design is Ideal for Patch Panel Applications.
Our jack has a wide-angle hinged design that is easy to work with. Easily customize your patch panels with no wasted ports.

UL Listed.
cULus compliant.

Professional Quality.
50u gold contact plating. Fire retardant UL94 V0 housing. Works with all SCP unloaded patch panels and keystone wall plates. Backward compatible with Gigabit Ethernet.
