The VA−102P12 is a 10−output power supply that powers 12V DC powered devices. The VA−101P12 can supply a maximum of 1A of current to each of ten devices for a total of 10A. The power supply is especially useful in high−population installations for saving space and eliminating a large number of 12V DC power adapters. The MD model is suitable for medical applications.
Key Features:
· Space Saving - Replaces up to 10 individual 12V DC power supplies for Kramer TOOLS™, Kramer PicoTOOLS™, and Kramer 12V DC Desktop models.

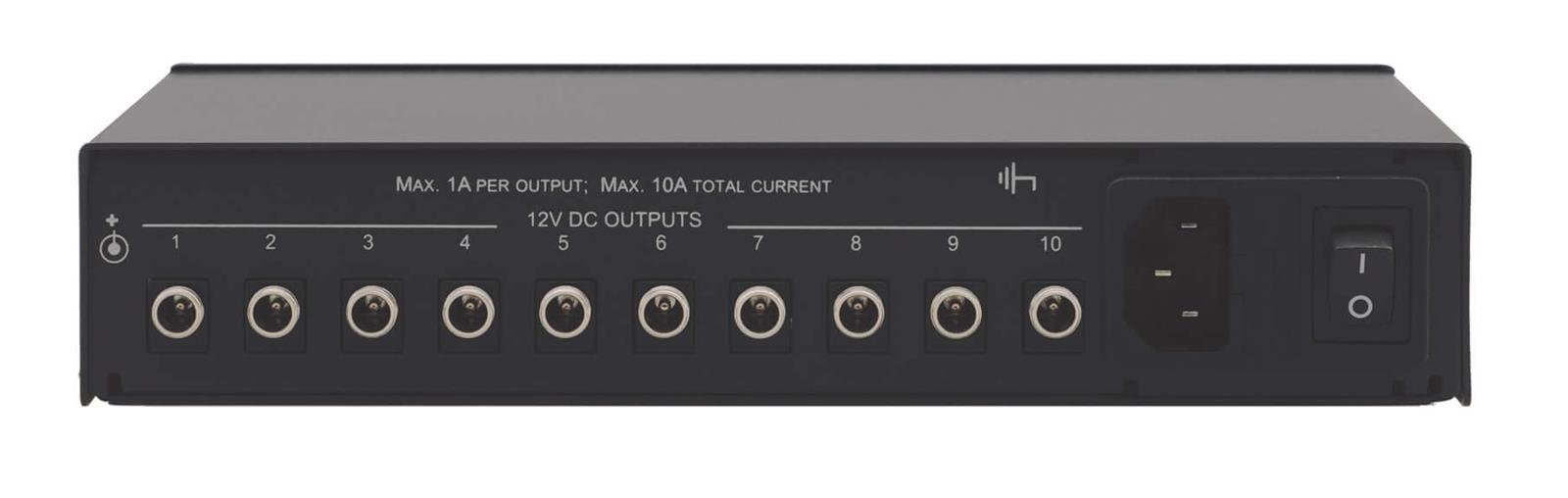

· Outputs - 10 12V DC outputs that supply 1A max. current for each output for a total of 10A total.

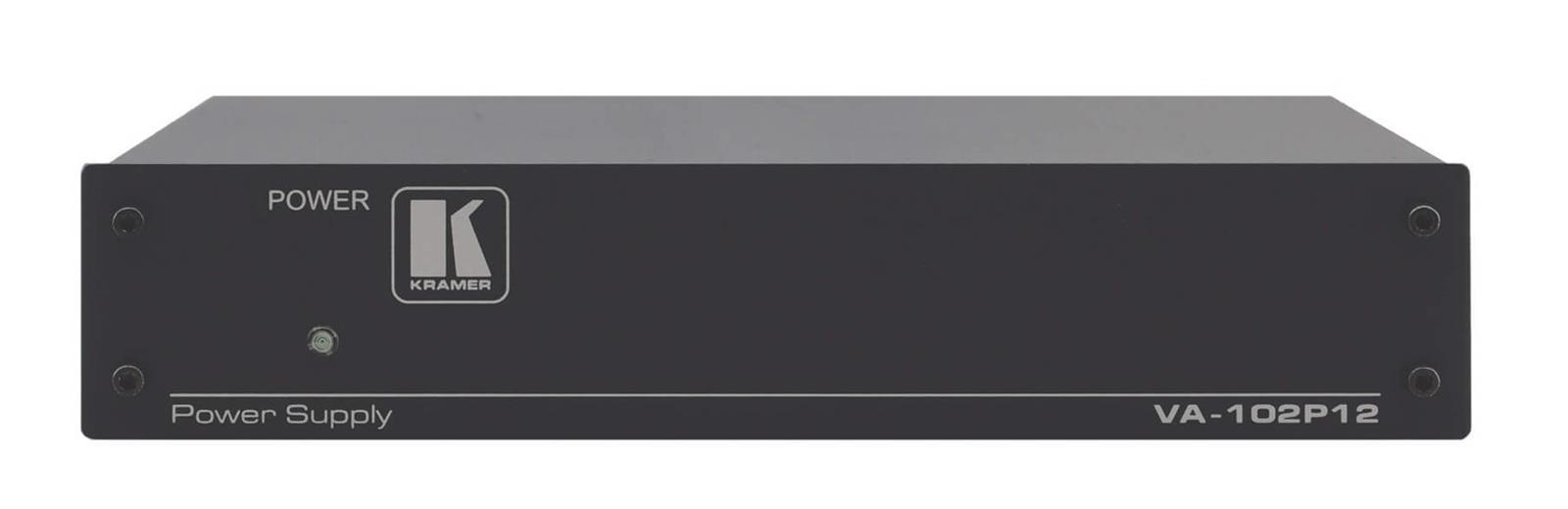

· Indicator - Power LED.
· Size - Desktop - Mount 2 units side-by-side in a 1U rack space with the optional RK-1 adapter.
Generelt
- Farve
- Sort
Elektriske specifikationer
- AC-indgangsspænding (V)
- 100-240 V
- AC input frequency (Hz)
- 50/60Hz
- Udgangsspænding (V)
- 12 V
- Maks. strømstyrke (A)
- 1 A
Mål og vægt
- Bredde
- 215 mm
- Dybde
- 163 mm
- Højde
- 43,6 mm
- Nettovægt
- 1,2 kg
Øvrigt
- Inkluderet tilbehør
- 10 DC to DC cables, 95cm per cable, AC Power Cable
- Garanti
- 7 år
Forpakningsinfo
- Forpaknings størrelse
- 351 x 212 x 72 mm
- Forpaknings vægt
- 1,76 kg
