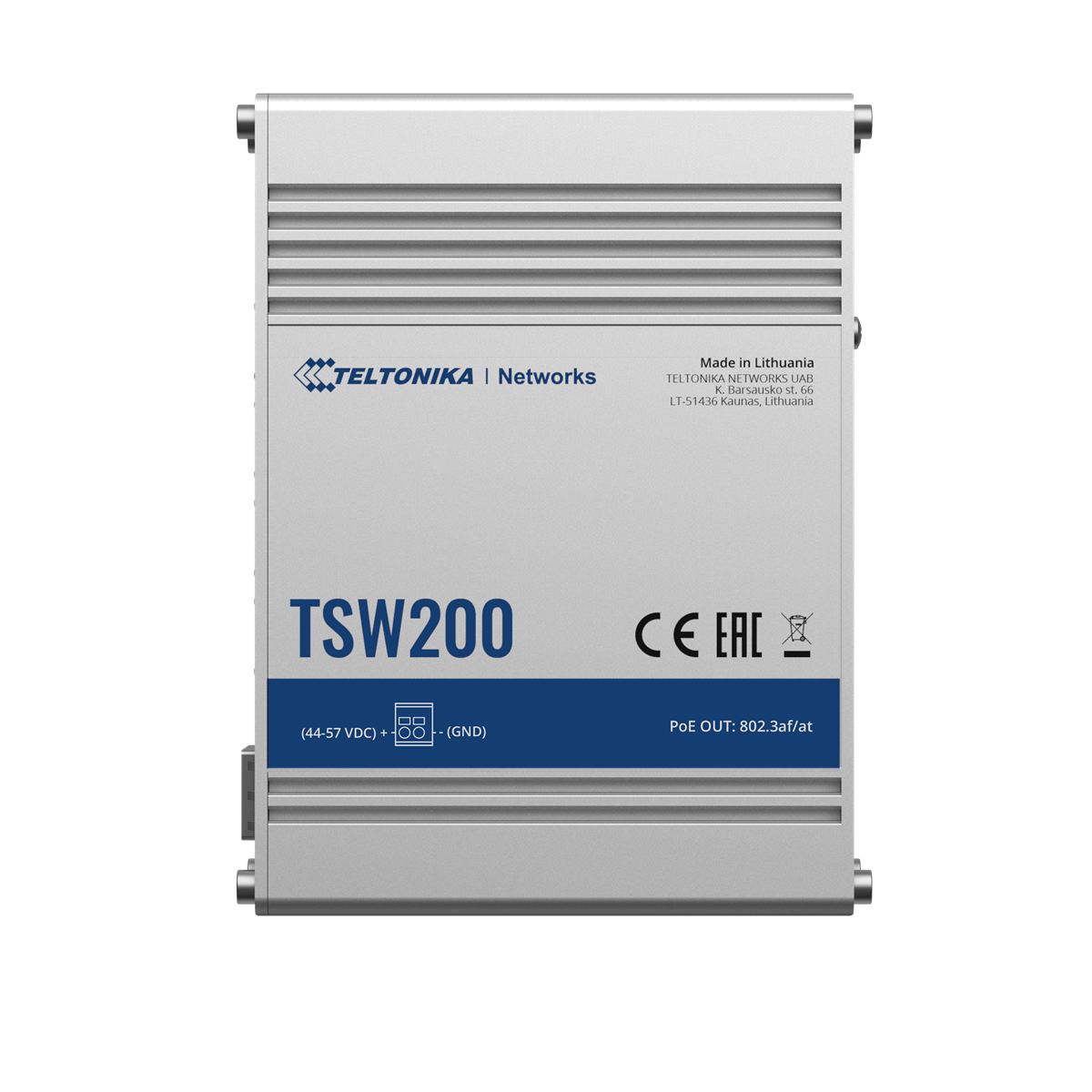

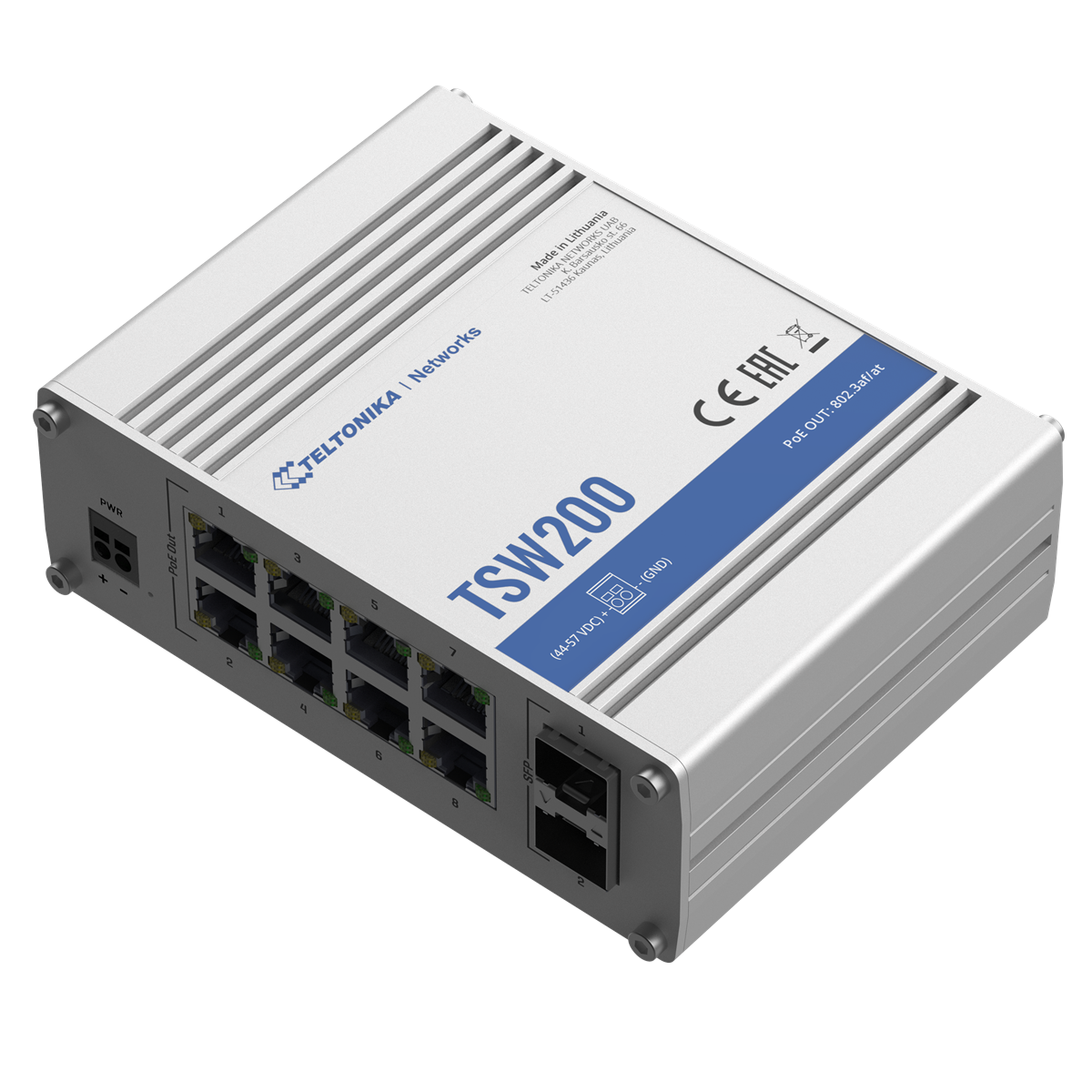

// TSW200 is industrial unmanaged switch from Teltonika Networks.
// TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
// Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
// This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
NOTE: Power supply need to be ordered separately.
Administration / Styring
- Overskuelig
- Unmanaged
Forbindelser
- Primære porte
- 8 x
- SFP Ports
- 2 x
Netværk
- Primær porthastighed
- 1 Gbit/s
Dataoverførsel
- Switch kapacitet
- 10 Gbit/s
PoE
- PoE
- Ja
- PoE Ports
- 8 x
- PoE Standard
- IEEE 802.3at (PoE+)
- PoE Effect/Port
- 30 W
- PoE Budget
- 240 W
Energi
- Forbrug max
- 106 W
- Forbrug normalt
- 1,8 W
Enviromental
- IP Classification
- IP30
Dimensioner og vægt
- Bredde
- 132 mm
- Dybde
- 95,1 mm
- Højde
- 44,2 mm
- Vægt
- 456 g
Yderligere oplysninger
- Garanti
- 2 år
Forpakningsinfo
- Forpaknings størrelse
- 177 x 152 x 76 mm
- Forpaknings vægt
- 585 g
