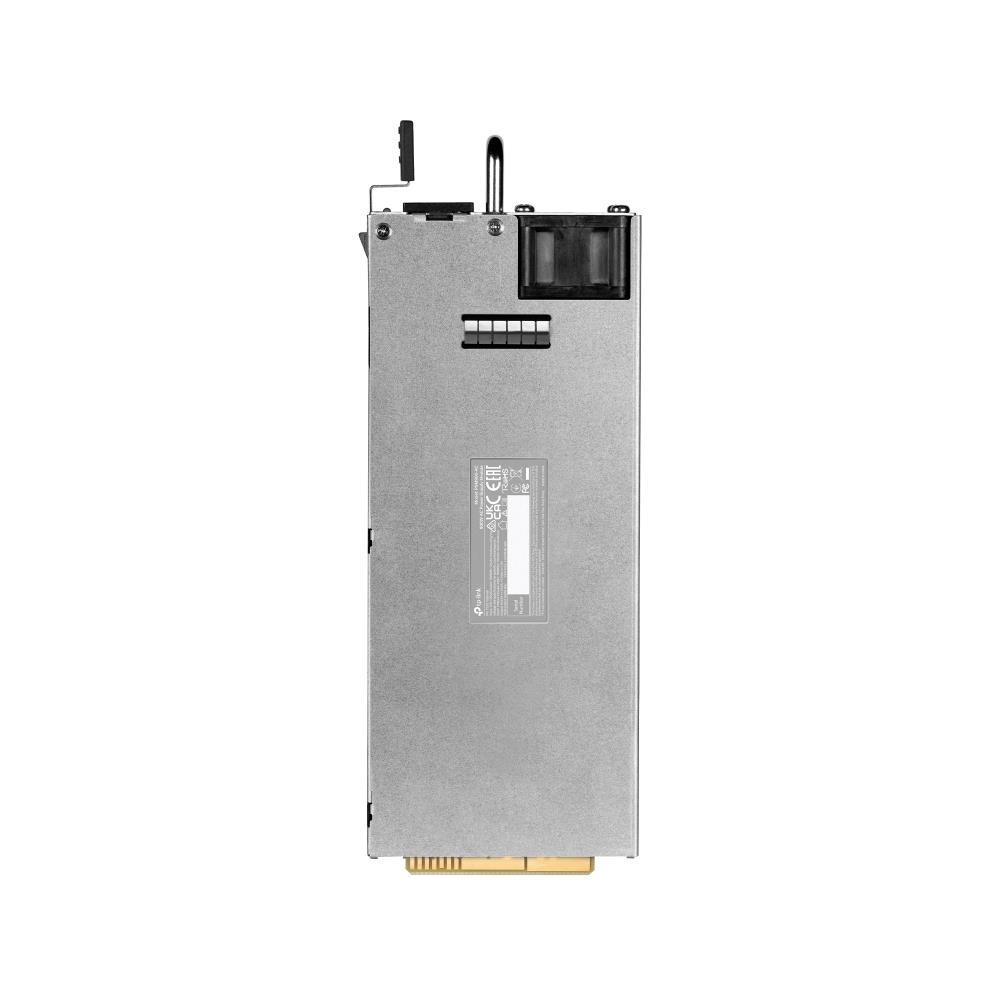

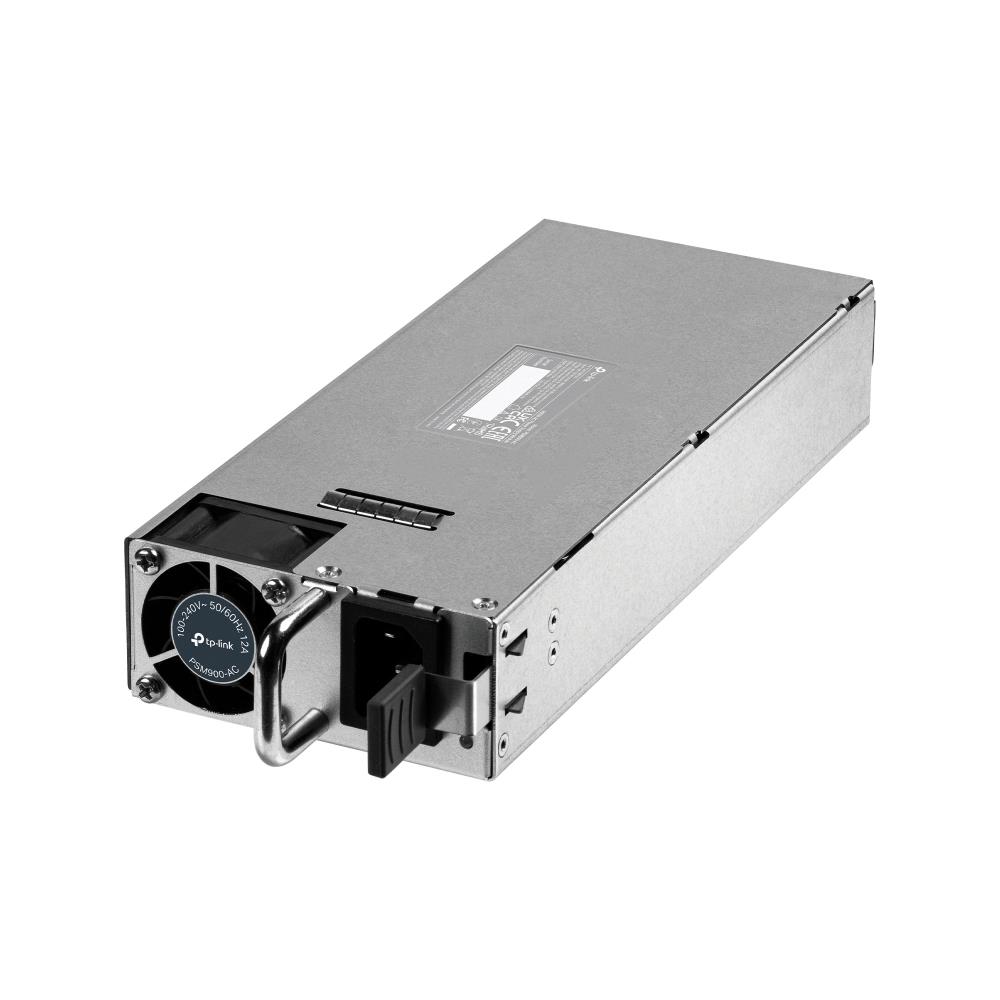

900W AC Power Supply Module PSM900-AC
- Up to 900 watts output power
- Hot swappable
- 53.5 V DC output voltage
- Output over-voltage/under-voltage/short circuit/over-current protection
- ±6 kV surge protection
- Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
What This Product Does
The TP-Link Power Supply Module PSM900-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 900 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.
General
- Color
- Silver
Features
- Compatible hardware
- SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
Electrical specifications
- AC input voltage (V)
- 100 - 240 V
- AC input frequency (Hz)
- 50/60 Hz
- Output voltage (V)
- 53.5 V
- Max current (A)
- 10 A
- Output power (W)
- 900 W
Measurements and weight
- Width
- 95.8 mm
- Depth
- 259.5 mm
- Height
- 40.1 mm
Various
- Warranty
- 2 years
Packaging info
- Packaging size
- 400 x 250 x 80 mm
- Packaging weight
- 1.72 kg
