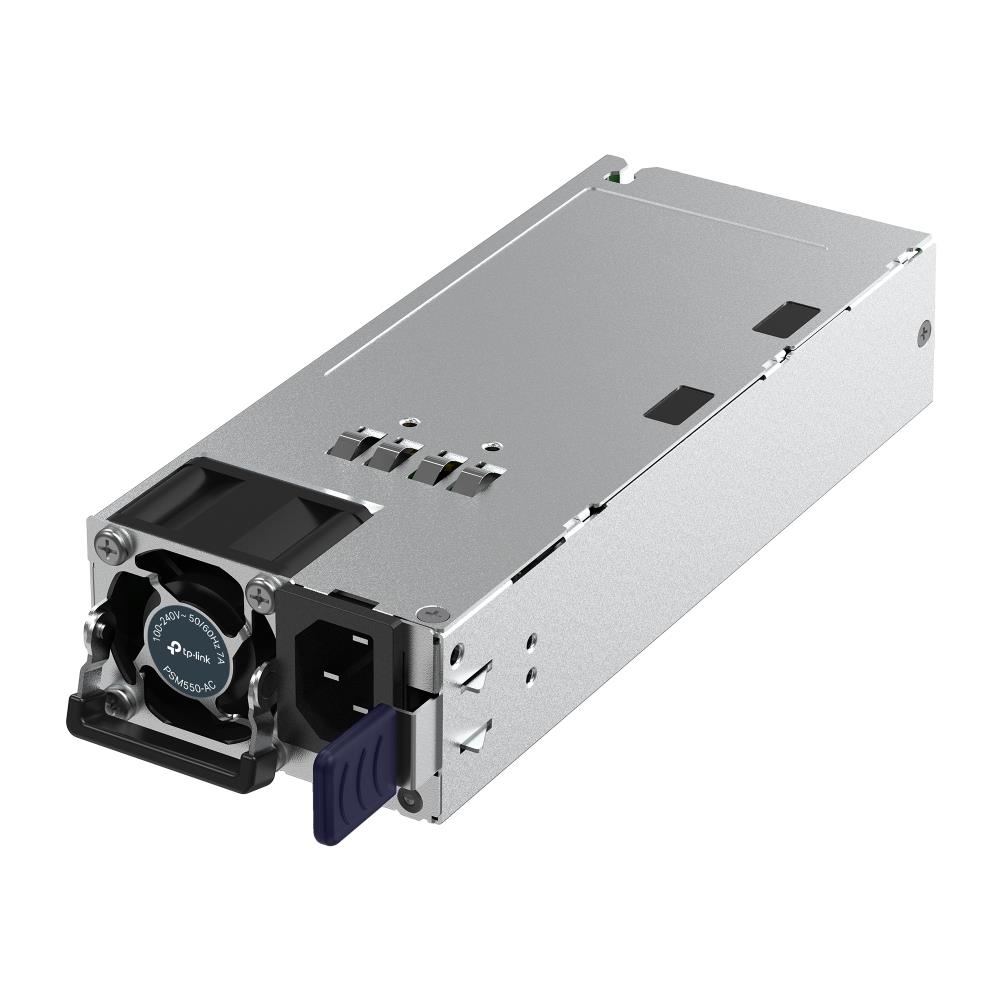

550W AC Power Supply Module PSM550-AC
- Up to 550 watts output power
- 12 V DC output voltage
- Fully hot-swappable, ensuring no system interruption during installation or replacement
- Output over-voltage/over-current/short circuit/over-temperature protection
- ±4 kV surge protection
- Suitable for SX6632YF, S7500-26XF6Y
What This Product Does
The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.
General
- Color
- Silver
Features
- Compatible hardware
- TP-Link SX6632YF, S7500-26XF6Y
Electrical specifications
- AC input voltage (V)
- 100 - 240 V
- AC input frequency (Hz)
- 50/60 Hz
- Output voltage (V)
- 12 V
- Max current (A)
- 45 A
- Output power (W)
- 550 W
Measurements and weight
- Width
- 185 mm
- Depth
- 73.5 mm
- Height
- 40 mm
Various
- Warranty
- 2 years
Packaging info
- Packaging size
- 400 x 250 x 80 mm
- Packaging weight
- 1.51 kg
