Product is a non-stock item and cancellation or return after purchase is not possible. Order now for delivery within 14 days.
100-240V Redundant Power Supply Module
- Up to 102 watts output power
- Output over-voltage/short circuit/over-current protection
What this product does

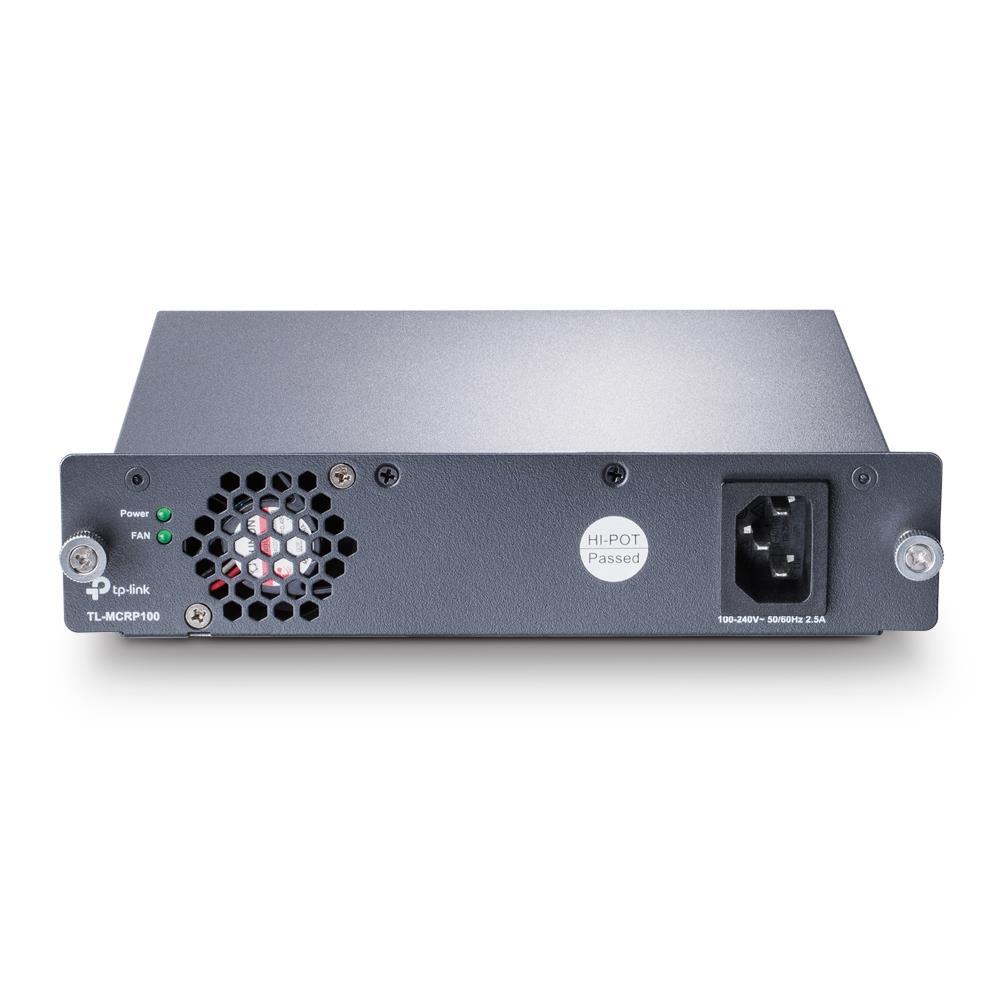

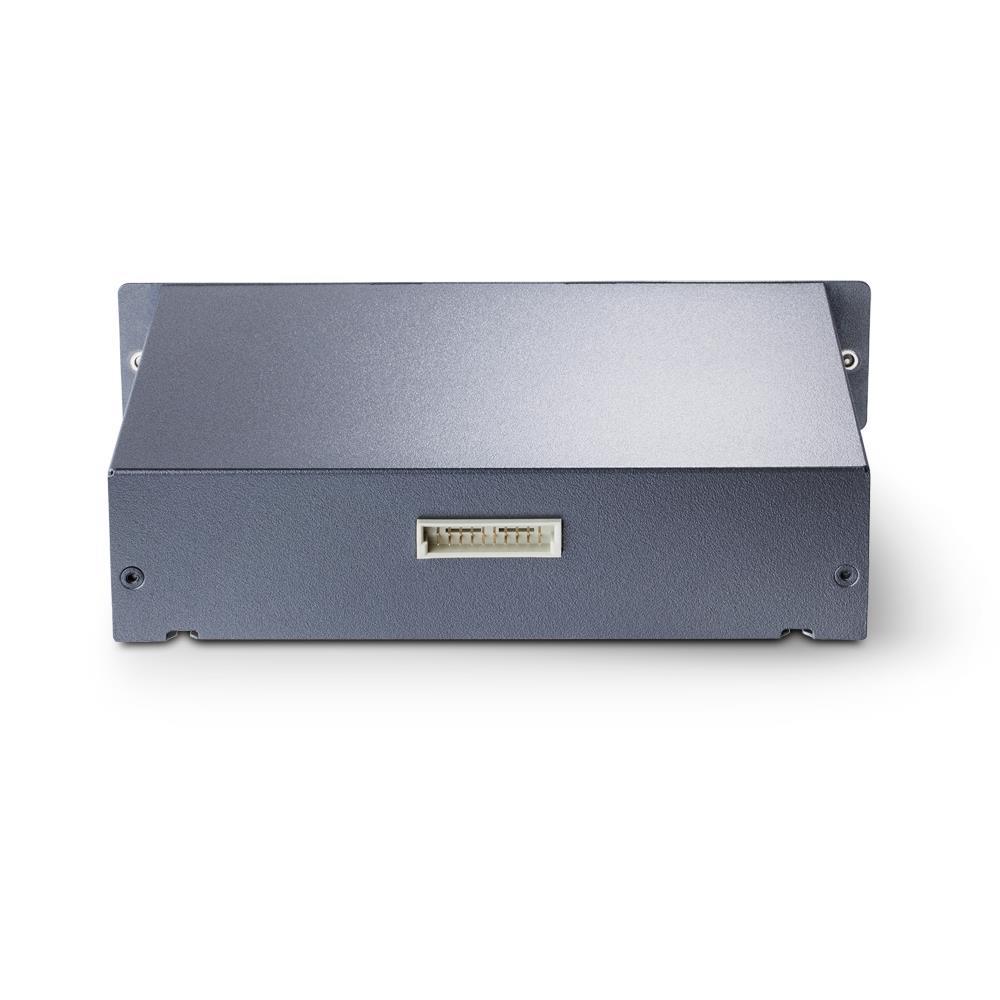

The TP-LINK Redundant Power Supply Module TL-MCRP100 is an AC-input and DC-output power supply module. It can convert 100-240V 50/60Hz input voltage into 9.5VDC output with rated wattage of 102W. The power supply module supports output over-voltage/short circuit/over-current protection. TL-MCRP100 is applicable to 14-Slot Rackmount Chassis TL-MC1400.
Electrical specifications
- AC input voltage (V)
- 100 - 240 V
- AC input frequency (Hz)
- 50 - 60 Hz
- Output voltage (V)
- 9.5 V
- Max current (A)
- 6.25 A
- Output power (W)
- 102 W
Measurements and weight
- Width
- 210 mm
- Depth
- 130 mm
- Height
- 70 mm
Various
- Warranty
- 2 years
Packaging info
- Packaging size
- 412 x 256 x 88 mm
- Packaging weight
- 1.41 kg
