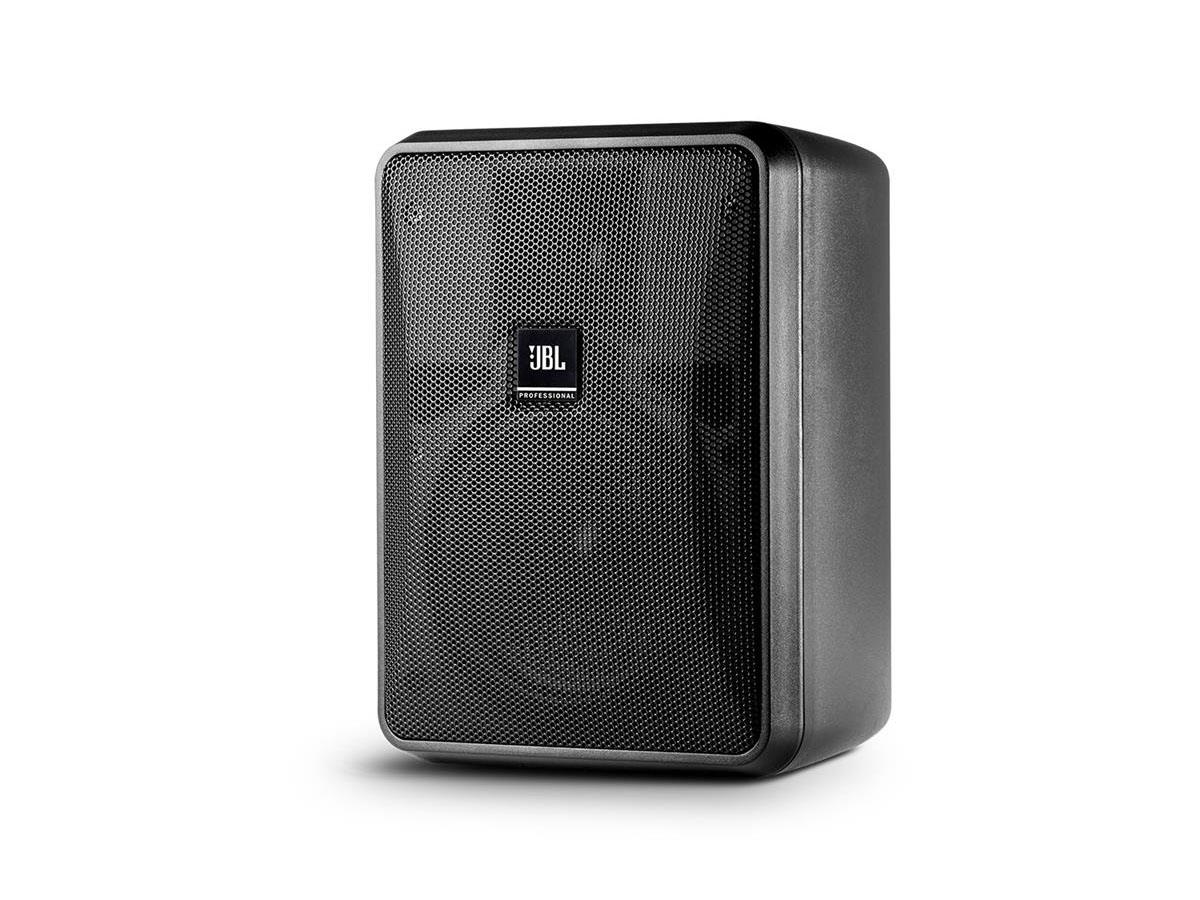

This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required. The frequency response is extremely smooth, resulting in a very natural sound character, and the response extends down to 60 Hz, providing strong bass capability. The system is capable of handling 100 Watts continuous pink noise (200 Watts program) at its 8 ohm setting and is also equipped with a built-in 30 Watt 70V/100V multi-tap transformer for operation on distributed speaker lines. The combination of high sensitivity and power handling provides high Max SPL of 110 dB
Features
- Components:
• 5-¼” woofer with woven fiberglass cone
• 3/4” PEI diaphragm tweeter with fluid cooling - Contemporary, high-design appearance
- Built-in InvisiBall® mounting hardware*, plus available U-bracket
- Weather resistant enclosure and transducers
- Wide 100° x 100° coverage
- 100 Watt power handling (200 Watt program) in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer.
- High fidelity sound character with broad frequency response of 60 Hz – 20 kHz.
General
- Modellserie
- Control 20
- Høyttalertype
- Vegg
- Aktiv/Passiv
- Passive
- Farge
- Svart
Speaker drivers
- LF
- 5,25 "
- HF
- 0,75 "
Audio specifications
- Impedance
- 8 Ohm
- Frekvensområde Min
- 60 Hz
- Frekvensområde Maks
- 20 000 Hz
- Sensitivity (1W/1m)
- 90 dB
- Effekt
- 75 W
- 70/100V
- Ja
- Transformer taps (100V)
- 30W, 15W, 7.5W
- Transformer taps (70V)
- 30W, 15W, 7.5W, 3.7W
- Max SPL
- 110 dB 116 peak
- Coverage angle (Hor)
- 100 °
- Coverage angle (Ver)
- 100 °
Størrelse & Vekt
- Width
- 188 mm
- Dypde
- 145 mm
- Høyde
- 243 mm
- Net weight
- 3,4 kg
Additional information
- Outdoor use
- Ja IP-44; IP-55 with optional WeatherMax grille/panel cover
- Included Accessories
- InvisiBall wall-mounting system; 6 mm x 100 mm hex key
Pakkeinformasjon
- Pakkestørrelse
- 210 x 290 x 300 mm
- Pakkevekt
- 3,31 kg
Pakkeinformasjon (2 stk)
- Pakkestørrelse
- 410 x 290 x 300 mm
- Pakkevekt
- 8,50 kg
